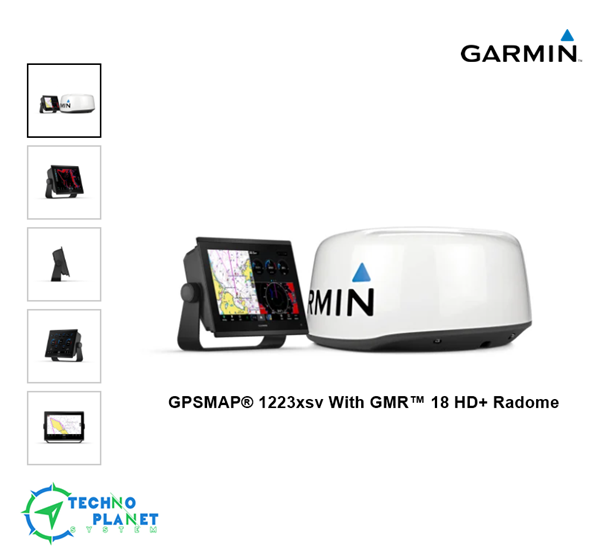

Garmin Chartplotter GPSMAP 1223xsv With GMR™ 18 HD+ Radome
Brand |
Garmin |
Model |
GPSMAP® 1223xsv With GMR™ 18 HD+ Radome |
Origin |
USA |
Display Size |
12″ |
Charts and Maps |
WORLDWIDE BASEMAP |
Sonar Type |
ULTRA HIGH-DEF SIDEVÜ, CLEARVÜ AND TRADITIONAL CHIRP |
Radar Type |
GMR™ 18 HD+ Radome |
Availability |
Pre-Order |
GET A SHARPER VIEW FROM YOUR CONNECTED HELM
With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9” or 12” chartplotter integrates seamlessly into your Garmin marine system.
 |
 |
 |
 |
 |
 |
|
Easily integrate with more engines. |
Connect to compatible third-party devices with OneHelm™ digital switching. |
Easily build your marine system using the best of network connectivity. |
Navigate any waters with preloaded Garmin Navionics+™ charts and mapping1. |
See below your boat with built-in sonar capabilities. |
Manage your marine experience from nearly anywhere2. |
| General | |
| DIMENSION | 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) |
| TOUCHSCREEN | yes |
| INPUT | Touchscreen |
| DISPLAY SIZE | 10.3″ x 6.4″; 12.1″ diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA |
| WEIGHT | 6.6 lbs (3.0 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 2 microSD cards (back of unit) |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
| HAS BUILT-IN RECEIVER | yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | yes |
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| SUPPORTS WAAS | Yes |
| Built-in Maps | |
| BUILT-IN AUTO GUIDANCE | yes |
| BLUECHART (COASTAL) | yes |
| LAKEVU (INLAND) | Yes |
| TIDE TABLES | Yes |
| Optional Map Support | |
| LAKEVÜ G3 | yes |
| LAKEVÜ G3 ULTRA | Yes |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| RASTER CHART SUPPORT | Yes |
| Chartplotter Features | |
| SMART MODE COMPATIBLE | yes |
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD BLACK BOX SONAR SUPPORT | Yes |
| GCV BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN® COMPATIBLE | Yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| SPOKEN AUDIO ALERTS | Yes |
| ONEHELM SUPPORT | Yes |
| Sonar Features & Specifications | |
| DISPLAYS SONAR | yes |
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | yes |
| LIVESCOPE | Yes |
| Connections | |
| NMEA 2000 PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite) |
| VIDEO OUTPUT PORTS | 1 HDMI |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 |
| 12-PIN TRANSDUCER PORTS | 1 |
| USB PORTS | yes |
| BNC EXTERNAL GPS ANTENNA PORT | Yes |
| BLUETOOTH® PAIRING | Yes |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
| Electrical Features | |
| POWER INPUT | 10 to 32 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.68 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.56 A |
| MAXIMUM POWER USAGE AT 10 VDC | 43.0W |
| in the box | GPSMAP 1223xsv chartplotter
microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) 8-pin transducer to 12-pin sounder adapter cable Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation |
